Steam Deck and Steam Hardware
Steam Deck, Steam Machine and Steam Frame share the same requirements for controller support. To be Verified, a game must show glyphs that match the controller the player uses, and open an on-screen keyboard when the player needs to enter text. This page shows the nodes that cover both.
The nodes and the widget on this page require SteamCore PRO 1.1.12 or newer.
Prerequisites
- Steam is running and the game is launched as a Standalone Game or a packaged build.
- For glyphs, call Init on Get Steam Input once, for example in your Game Instance.
Glyphs for Unreal Gamepad Keys

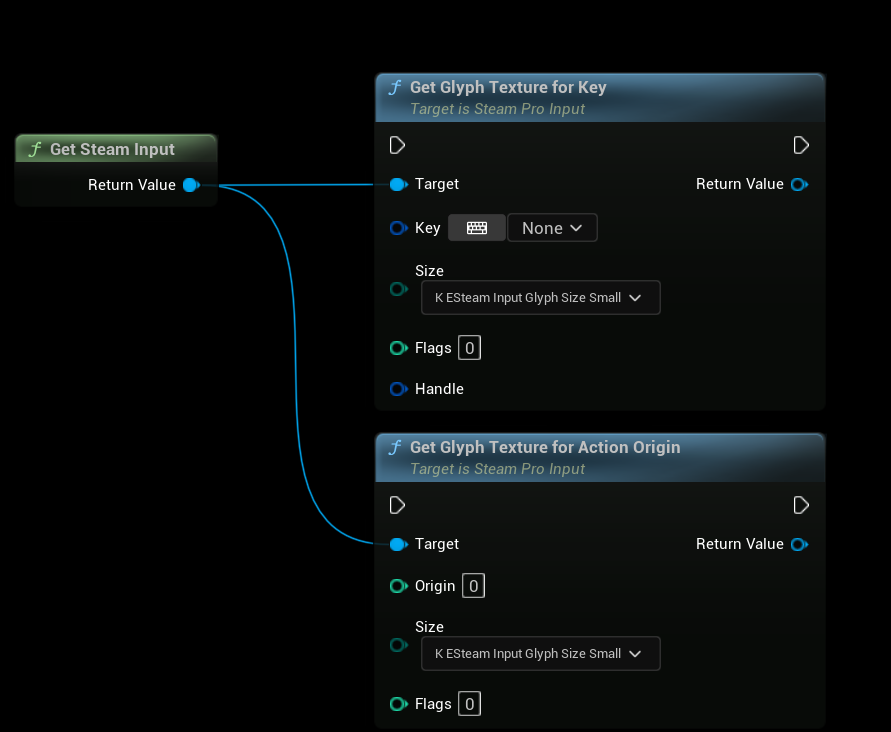

Most games read input through Enhanced Input and Unreal's gamepad keys, such as Gamepad Face Button Bottom. Steam Input still knows which controller the player is using, so the plugin can show the right glyph for a key. The nodes are called on Get Steam Input:
| Node | Description |
|---|---|
| Get Glyph Texture for Key | Returns the glyph for a gamepad key as a texture, matching the player's controller. On a PlayStation controller, Gamepad Face Button Bottom returns the cross glyph. |
| Get Action Origin for Key | Returns the action origin for a gamepad key, if you want to use it with the other Steam Input nodes. |
| Get Xbox Origin for Key | Returns the Xbox button that matches a gamepad key. |
Leave Handle unconnected to use the first connected controller. If no controller is connected through Steam Input, Get Glyph Texture for Key returns the Xbox glyph.
To update the glyphs when the player switches controller, call Listen for Controller Change and refresh your UI in On Controller Changed.
Example

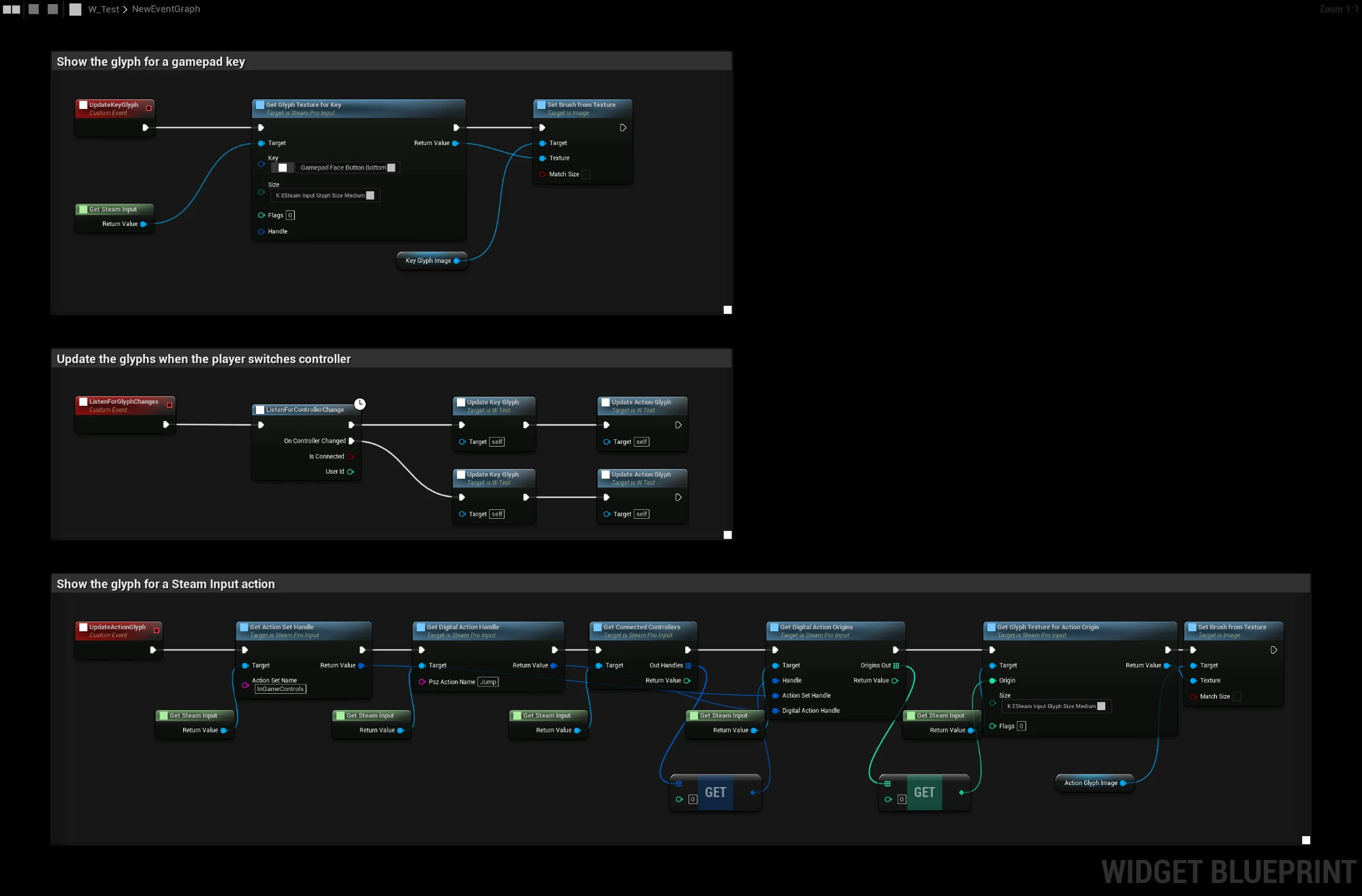

This Widget Blueprint shows two glyphs in the Image widgets KeyGlyphImage and ActionGlyphImage:
- UpdateKeyGlyph shows the glyph for Gamepad Face Button Bottom.
- UpdateActionGlyph shows the glyph for the Jump action in the InGameControls action set, using the first connected controller.
- ListenForGlyphChanges updates both glyphs, and updates them again when the player switches controller. Call it from Event Construct.
Entering Text
Steam has two on-screen keyboards. The nodes return On Failure when Steam can't show the keyboard, which happens when Steam isn't in Big Picture mode and the game isn't running on Steam hardware. Use your regular text input in that case.
Text Input Dialog

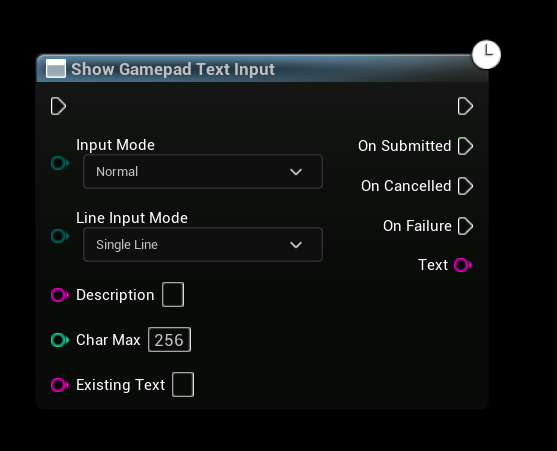

Show Gamepad Text Input opens a full-screen dialog and returns the text when the player is done. It's in the SteamCore|Utils|Async category.
| Input | Description |
|---|---|
| Input Mode | Normal, or Password to hide the text. |
| Line Input Mode | Single Line or Multiple Lines. |
| Description | Tells the player what to enter, for example "Enter your name". |
| Char Max | The maximum number of characters. |
| Existing Text | Text the player can edit. |
On Submitted returns the text. On Cancelled is called when the player closes the dialog without submitting.
Floating Keyboard

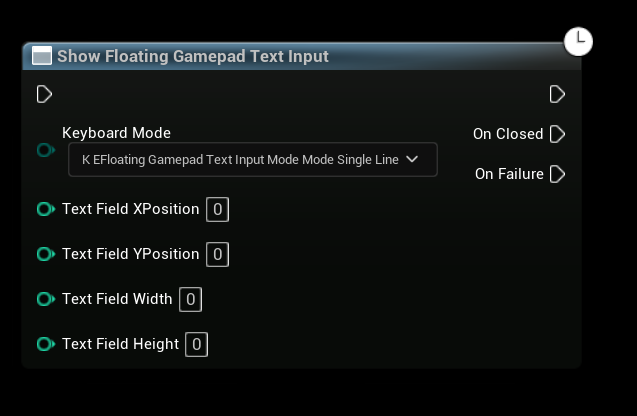

Show Floating Gamepad Text Input opens a keyboard over the game. The keys are sent to the game as regular keyboard input, so the player types into your own text box. Pass the position and size of the text box in pixels, relative to the game window, so the keyboard doesn't cover it. On Closed is called when the keyboard is closed.
Steam Editable Text Box
The easiest option is the Steam Editable Text Box widget, found in the SteamCore category of the UMG palette. It works like a regular Editable Text Box, and opens the floating keyboard without covering the text box when it receives focus.
| Setting | Description |
|---|---|
| Show Steam Keyboard | Open the keyboard when the text box receives focus. Enabled by default. |
| Close Steam Keyboard on Focus Lost | Close the keyboard when the text box loses focus. Enabled by default. |
The keyboard layout follows the text box's Keyboard Type: Number shows a numeric keyboard and Email shows an email keyboard. Read-only text boxes don't open the keyboard.
